Customized common anode 7 Segment LED Display for Electric Scooter

Customized common anode 7 Segment LED Display for Electric Scooter

Наименование марки:	LIGHT-BO
Номер модели:	LB3122IWRF1S-T
МОК:	1000
цена:	Negotiate
Условия оплаты:	TT in advance
Способность к поставкам:	50000pcs/days

Подробная информация

Описание продукта

Подробная информация

Place of Origin:

SHENZHEN，CHINA

Сертификация:

ISO9001&RoHS

Dimensions:

31*22.1*11MM

Operating Temperature:

-40~105 ℃

Character Height:

12.88MM

Supplier Type:

ODM, OEM, original manufacturer,

Tube Chip Color:

full color

Screen Dimention:

customized Size/Curve

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Описание продукта

Customized 7 Segment LED Display for Electric Scooter

Product Descripition

Digit height	12.88mm	0.25,0.36,0.39....5.0(inch)
Color	White/Red/Orange	White, blue,pure green, yellow-green, orange,etc.
Size	3122.111mm	Other size are supported
Polarity	Common anode
Life span	80000hours
Free Samples	supported
Lead time for sample	5-7 working days	Tooling samples are 15-20 working days
Lead time for formal order	15-20 working days	According to order quantity
OEM&ODM	Support	Based on customer's drawing or idea
LOGO printing	Support	Based on customer's drawing or idea
MOQ	1000PCS	Can accept 100-500pcs for first order

Product Features

Superior Optical Performance

High forward voltage design delivers exceptional luminous intensity

Uniform light distribution across all segments for perfect readability

Energy Efficient Operation

Ultra-low power consumption design

Minimal operating current requirements

Robust Construction & Reliability

Industrial-grade components built to standard dimensions

Maintains stable performance in demanding environments

Outstanding visibility even under bright ambient lighting

Long-Term Durability

Extended operational lifespan

Fully compliant with RoHS and REACH environmental standards

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Color:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.5		3.0	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	120		160	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	515		525	nm

Code:Yellow Green- J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		573	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	90		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		470	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

Applications

Audio Equipment & Instrument Panels - Perfect for level meters and parameter displays

Home Electronic Appliances - Ideal for refrigerators, ovens, and climate control systems

Industrial Process Indicators - Suitable for temperature, humidity, and pressure monitoring

Multimedia Products - Excellent for digital clocks and information displays

General Digital Indicators - Adaptable for counters, timers, and measurement devices

Detailed Photos

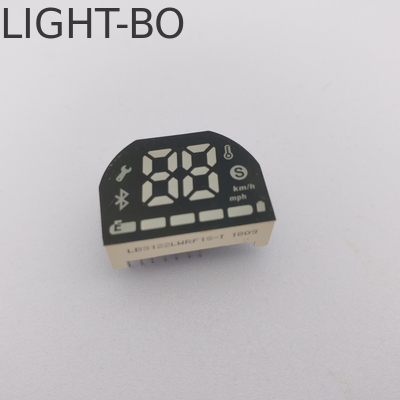

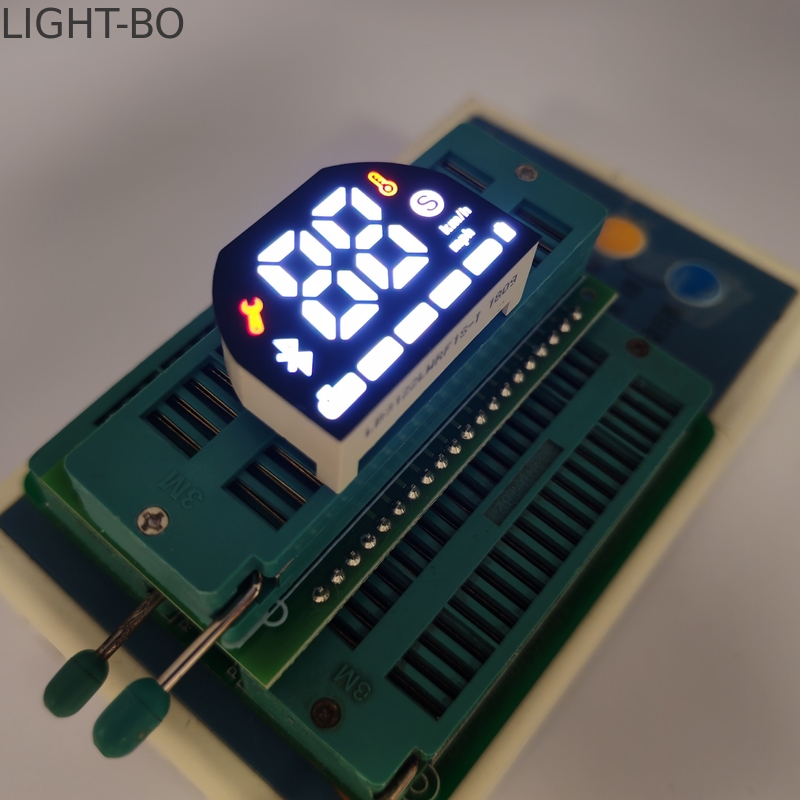

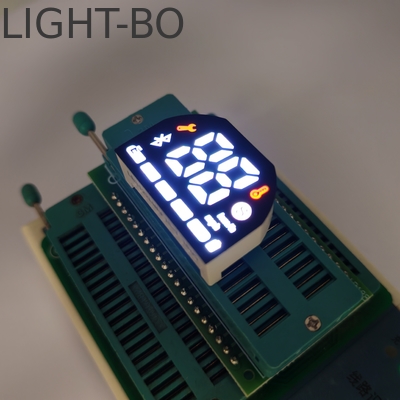

Customized common anode 7 Segment LED Display for Electric Scooter 1

Our company offers a comprehensive range of LED display solutions, including LED segment displays, dot-matrix LED displays, LED display modules, and classic 7-segment LED displays.
