16-Segment White Alphanumeric LED Display Module

16-Segment White Alphanumeric LED Display Module

Наименование марки:	LIGHT-BO
Номер модели:	LB10805DWH3B
МОК:	1000
цена:	Negotiate
Условия оплаты:	Т/Т, Вестерн Юнион
Способность к поставкам:	20000 штук/день

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Шэньчжэнь ， Китай

Сертификация:

ISO9001&RoHS

Яркость света:

120-140 мкд

Гарантия:

Два года

Цвет светодиода:

Ультра яркая белизна

Температура хранения:

От -40°С до +85°С

УСЛУГА:

ОЭМ/ОДМ

Номер числа:

ОДНА цифра

Упаковывая детали:

EPE+Картон

Поставка способности:

20000 штук/день

Выделить:

16-segment white LED display module

alphanumeric LED display module

16-segment LED display with warranty

Описание продукта

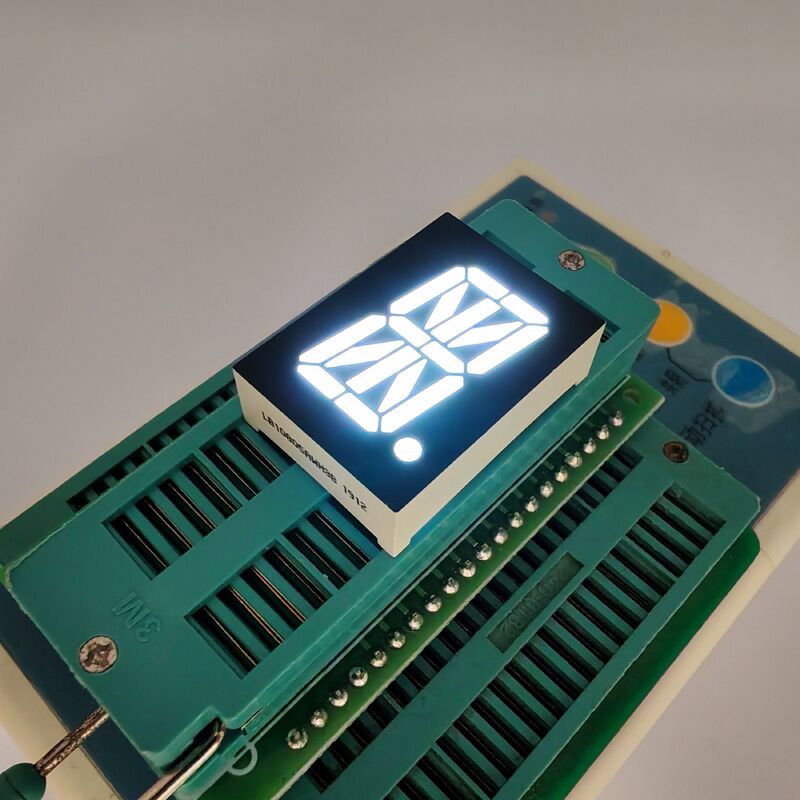

16-Segment White Alphanumeric LED Display Module

Product Overview

Standard Model: LB10805DWH3B | Custom part number printing available

Digit Number	1 digit	Can be configured as 2, 3, 4, 5, or 6 digits
Standard Color	White	Other colors include blue, pure green, yellow-green, orange, etc.
Polarity	Common Anode	Common Cathode also available
Lifespan	80,000 hours	-
Free Samples	Yes, supported	Tooling samples require 15-20 working days
Sample Lead Time	5-7 working days	-
Production Lead Time	15-20 working days	Subject to order quantity
OEM/ODM Support	Fully supported	Based on customer drawings or ideas
Logo Printing	Supported	Customization based on provided artwork
Minimum Order Quantity (MOQ)	1,000 PCS	First order MOQ can be 100-500 PCS

Technical Specifications

Optical Design: High-contrast white-on-black display ensuring superior legibility
Electrical Performance: High luminous intensity combined with low operating current
Optical Quality: Uniform segment illumination with consistent brightness
Integration: Designed for easy PCB mounting and direct IC interface compatibility
Environmental Compliance: Conforms to RoHS standards for environmental safety

Product Parameters by Color Code

Yellow Green - J/JU: Elevate your displays with vivid hues tailored to meet your unique display requirements.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y: Choose this warm, inviting color to craft displays that command attention and exude warmth.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F: Make your display settings pop with our dynamic and eye-catching color choice.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R: Revel in the vibrancy of this rich, captivating color, perfect for any striking display.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR: Ensure superior visibility with an intense and vivid red that enhances any display.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green: Opt for a refreshing and clear choice that complements eco-friendly designs effortlessly.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH: Infuse your display with a cool, bright hue, lending a contemporary aesthetic to any setting.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH: Achieve unparalleled clarity and sophistication with this immaculate choice, elevating your displays.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Uncover the robust performance parameters that define the remarkable capabilities of our LED display.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC
