Электрический скутер с светодиодным дисплеем

High-Brightness White 7-Segment LED Display for Electric Scooters

High-Brightness White 7-Segment LED Display for Electric Scooters

Наименование марки:	LIGHT-BO
Номер модели:	LB7540IWH1B-D
МОК:	1000
цена:	Negotiate
Условия оплаты:	Т/Т, Вестерн Юнион
Способность к поставкам:	20000 штук/день

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Шэньчжэнь ， Китай

Сертификация:

ISO9001&RoHS

источник питания:

Батарея

Водонепроницаемость:

Использование:

Крытый/Открытый

Гарантия:

1 год

Прямой ток:

20 мА

Внешнее измерение:

75*40*5 мм

Упаковывая детали:

EPE+Картон

Поставка способности:

20000 штук/день

Выделить:

high-brightness 7-segment LED display

electric scooter LED display

white LED display for scooters

Описание продукта

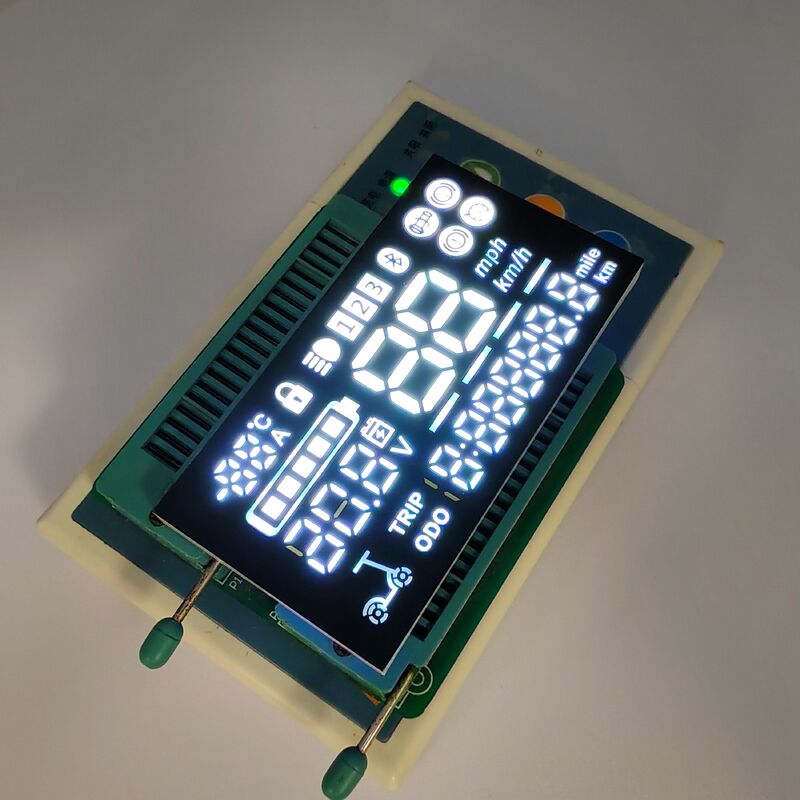

High-Brightness White 7-Segment LED Display for Electric Scooters

Product Overview

Custom high-brightness 7-segment LED displays designed specifically for electric scooters and various industrial applications.

Feature	Standard Specification	Custom Options
Your Part Number	-	Printing of your custom part number is available
Standard Part Number	LB7540IWH1B-D	-
Standard Color	Ultra Bright White	Options: Red, Blue, Pure Green, Yellow-Green, Orange, etc.
Standard Dimensions	75 × 40 × 5 mm	Custom sizes supported
Polarity	Common Anode	Common Cathode is available
Lifespan	80,000 hours	-
Free Samples	Yes, supported	Tooling samples require 15-20 working days
Sample Lead Time	5-7 working days	-
Production Lead Time	15-20 working days	Subject to order quantity
OEM/ODM Service	Fully Supported	Customization based on your drawings or concepts
Logo Printing	Supported	Based on your provided artwork
Minimum Order Quantity (MOQ)	1,000 PCS	Initial order MOQ can be 100-500 PCS

Key Product Benefits

Enhanced Visibility: High-contrast display for easy reading
Powerful Output: High-intensity brightness in various conditions
Low Power Use: Energy-saving design for extended battery life
Dependable Operation: Consistent, stable performance over time
Smooth Appearance: Even light distribution across all segments

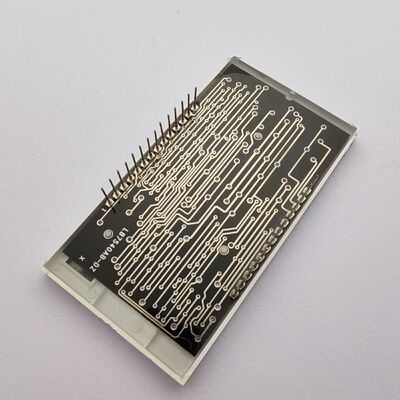

Simple Installation: Straightforward PCB mounting process
Design Flexibility: Seamless integration with IC-driven systems
Eco-Friendly: Compliant with RoHS environmental standards

Technical Specifications

Yellow Green - J/JU

Elevate your displays with vivid hues tailored to meet your unique display requirements.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Choose this warm, inviting color to craft displays that command attention and exude warmth.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Absolute Maximum Ratings (Ta=25ºC)

Robust performance parameters defining the remarkable capabilities of our LED display.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Profile

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO), established in 2006, symbolizes excellence in OEM and ODM services. As an ISO 9001:2015 certified leader, our legacy of over 15 years is marked by quality and innovation.

LIGHTBO propels clients to new heights with high-quality, cost-effective custom solutions, reducing expenses and fortifying competitive advantages globally.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display: Our innovative products find applications in home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating and cooling systems, showcasing our commitment to performance.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping and Logistics

Frequently Asked Questions

Are you a trading company or manufacturer?

We are original manufacturer with more than 20 years experience in optoelectronic LED displays.

What are your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

What is your MOQ?

Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Can I get samples for testing before placing an order?

Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

How long is your delivery time?

Delivery time: About 10-20 days; According to order quantity and raw materials. If you have urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

What are your payment terms?

We accept bank transfer, T/T, Western Union and Paypal with small amount. Details of payment methods can be negotiable.

Can you quote FOB prices?

Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

How can I get your catalogue and price list?

Please let us know your email address or contact us from website directly for our catalogue and price list.

Can I negotiate the prices?

Yes, we may consider discounts for bulk orders.

How much will the shipping charges be?

It depends on the size of your shipment and the method of shipping. We will provide the charge to you as requested.

Can you do custom design products?

Yes, OEM & ODM services are available. We can customize the sizes, LED color and functional icons according to your requirements.

If I send my design, can you make it exclusively for me?

Yes, we will not show it or sell to others without your authorization.

What is the samples lead time for customized products?

Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

What are your shipping methods?

We usually ship goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA, etc. You can also choose other methods that work best for you.

How do you ensure product quality?

We are ISO 9001 QMS certified manufacturers with more than 20 years experience. We conduct twice 100% testing for all products before shipment.
