Super Bright Red 0.36-Inch (9.2mm) 3-Digit 7-Segment Common Anode LED Display for Temperature/Humidity Indicators

Super Bright Red 0.36-Inch (9.2mm) 3-Digit 7-Segment Common Anode LED Display for Temperature/Humidity Indicators

Product Overview
Introducing the Super Bright Red 0.36-Inch 3-Digit 7-Segment Common Anode LED Display—a precision numeric solution engineered for temperature/humidity indicators, home appliances, and audio equipment. Designed to prioritize visibility, energy efficiency, and seamless integration, this display excels at delivering clear, reliable readouts for daily environmental metrics: room temperature (e.g., “23°C”), indoor humidity (e.g., “55% RH”), or process values (e.g., “180” for timer).
Its 9.2mm character height ensures readability from 0.5–1.5 meters (typical distance for countertop indicators or appliance panels), while the slim 22.5×14×7.2mm form factor fits into space-constrained designs—from mini humidity sensors to audio amplifier front panels. The yellow epoxy black surface enhances contrast with super bright red light, cutting through bright ambient light (e.g., sunlight, kitchen overheads) without eye strain.
With common anode polarity, low power consumption, and RoHS/REACH compliance, this display balances durability, eco-friendliness, and performance—ideal for 24/7 operation in temperature/humidity trackers and daily-use electronics.

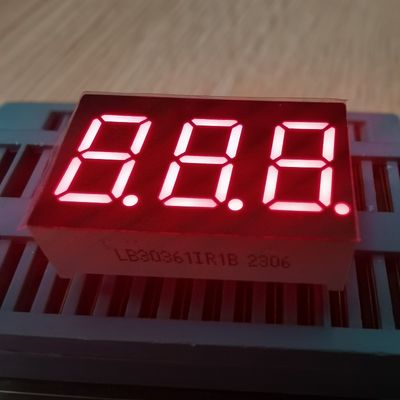

Main Image

Key Features (Temperature/Humidity Indicator-Optimized)
1. Superior Visibility for Environmental Readouts
Super Bright Red Illumination: Red light (high luminous intensity) stands out in bright environments (e.g., sunlit living rooms, busy workshops) — critical for quick, accurate checks of temperature/humidity (e.g., verifying “30°C” heatwaves or “70% RH” high humidity).
Yellow Epoxy Black Surface: The yellow epoxy base under the black surface softens harsh red light (reducing eye fatigue) while boosting contrast between segments and background—ensures digits (0-9) and decimal points (e.g., “24.5°C”) stay sharp, no glare or washout.
Even Segment Lighting: Luminous intensity is uniformly distributed across all segments (no “hot spots” or dim edges) — guarantees consistent readability of fine values (e.g., “51% RH” vs. “52% RH”) that matter for comfort or process control.
2. Compact & Industrial-Grade Design
Slim 22.5×14×7.2mm Dimensions: Optimized for space-constrained devices—fits into portable temperature/humidity monitors, slim smart thermostats, or audio equipment front panels without requiring redesigns.
Industrial Standard Size: Follows global 0.36-inch 3-digit display footprints—enables drop-in replacement for outdated displays (e.g., upgrading old green indicators to red in existing humidity panels) without modifying PCBs, saving time and cost.
Common Anode Polarity: Works with standard driver ICs (e.g., MAX7219, TM1638, HT1621) widely used in temperature/humidity indicators—simplifies circuit design, no need for custom polarity adapters.
3. Energy Efficient & Durable
Low Power Consumption (Extremely Low Current): Minimizes energy draw (typical 5-10mA/LED), extending battery life for portable indicators (e.g., handheld humidity meters) and reducing electricity use for plugged-in devices (e.g., wall-mounted thermostats).
Long Lifetime (50,000+ Hours): High-quality red LED chips withstand continuous use, matching the 8–10 year lifespan of most home appliances and indicators—reducing maintenance downtime (critical for 24/7 process indicators).
Stable Performance: Withstands temperature fluctuations (-10°C to 50°C, typical for indoor/outdoor use) and minor vibrations (e.g., audio equipment bass, appliance fan movement)—maintains brightness, no flickering during value updates.
4. Versatility & Compliance
RoHS/REACH Compliant: Free from lead, mercury, and harmful substances—meets strict global environmental standards, safe for home use and export to markets like the EU, North America, and Asia.
Multi-Color Options: Beyond super bright red, available in blue (modern aesthetics), green (normal status cues), white (neutral readouts), amber, orange, and yellow—flexible for functional needs (e.g., red for “high temp” alerts, green for “normal” humidity).

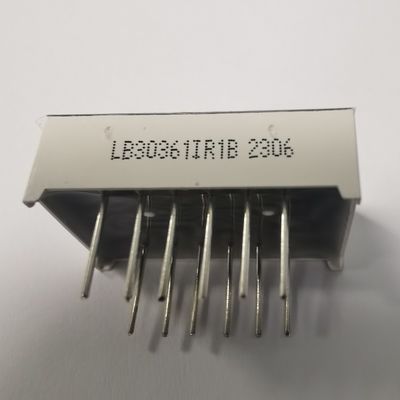

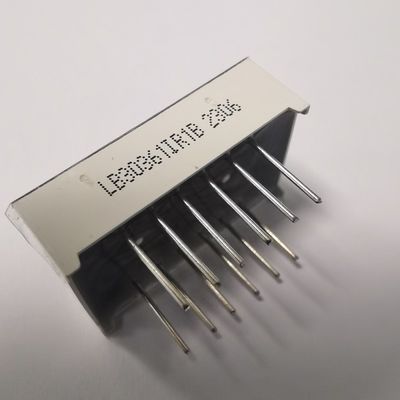

Detail Image

Technical Specifications

Category	Parameter	Specification (Temperature/Humidity-Optimized)
Basic Design	Display Type	3-Digit 7-Segment LED Display (supports decimal points for precision metrics)
	Polarity	Common Anode
	Character Height	0.36 inches (9.2mm)
	Outer Dimensions (L×W×H)	22.5 × 14 × 7.2mm
	Segment/Surface Finish	Yellow Epoxy with Black Surface
Optical Performance	Emitting Color	Primary: Super Bright Red; Optional: Blue/green/white/amber/orange/yellow
Electrical Parameters	Forward Voltage (VF)	Optimized for high luminous intensity (typical 1.8-2.2V per LED for red)
	Recommended Forward Current	5-10mA per LED
	Power Consumption	Low (energy-efficient for continuous use)
Quality & Compliance	Core Advantages	Even light distribution, bright ambient reliability, stable performance
	Compliance	RoHS Compliant, REACH Compliant





Applications
This display is tailored for environmental indicators and daily-use electronics, including:
Temperature/Humidity Indicators: Wall-mounted monitors (e.g., “22°C”/“50% RH”), portable sensors (e.g., “18°C”/“65% RH”), or greenhouse controllers (e.g., “28°C”/“70% RH”).
Home Electronic Appliances: Microwaves (cook time “02:30”), fridges (temp “5°C”), or air purifiers (filter life “90 days”).
Audio/Instrument Panels: Amplifiers (volume levels), AV receivers (channel numbers), or industrial process panels (timer “120s”).
Numeric Displays: Battery chargers (charge “85%”), fitness trackers (calories “250”), or smart home hubs (room temp “21°C”).

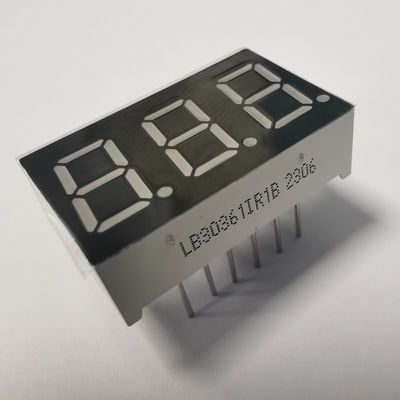

Application Image



Why Choose This Display for Temperature/Humidity Indicators?
Environmental Readout Clarity: Red light + yellow epoxy surface ensures visibility in bright/dim spaces—no misreading temp/humidity values that impact comfort.
Space-Saving Fit: Slim dimensions work for portable or wall-mounted indicators, no need to enlarge device enclosures.
Energy & Cost Efficiency: Low current use cuts battery replacement frequency; long lifespan reduces maintenance costs.
Easy Upgrades: Industrial standard size enables drop-in replacement for old displays, extending the life of existing indicators.
Global Compliance: RoHS/REACH certification simplifies export to international markets, aligning with consumer safety standards.



Order & Logistics Information
Minimum Order Quantity (MOQ): 300 pieces for standard super bright red models; 500 pieces for custom colors/configurations.
Packing: Anti-static EPE + carton (each display is individually wrapped to protect the yellow epoxy surface and pins).
Delivery Time: 5–7 days for standard models; 10–12 days for custom colors.
Transport: Express (FedEx/DHL for urgent samples), Air (medium-volume), Ocean (bulk production runs).



Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=20mA	100		140	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Color Temperature		If=20mA	6000		6500	K
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC
